RENTAL
BOOM LIFT (ELECTRIC TYPE)
...
| CODE | PA3 09011 | PA3 10011 | PA3 14011 | PA3 20012 | |
| CAPACITY (m) | 9 | 10 | 13.5 | 19.58 | |
| MANUFACTURER | GENIE/LGMG | ||||
| MODEL | Z30/20N,A09JE2 | Z34/22N | Z45/25J,A14JE2 | AR20JE-2 | |
| WORKING HEIGHT (m) | 11 | 12 | 15.5 | 21.58 | |
| PLATFORM HEIGHT (m) | 9 | 10 | 13.5 | 19.58 | |
| LIFT CAPACITY (kg) | 227 | 227 | 227 | 260 | |
| DRIVEN | GENIE/LGMG | ||||
| DIMENSTIONS | L (mm) | 5,110 | 5,720 | 5,560 | 7,630 |
| W (mm) | 1,190 | 1,470 | 1,790 | 2,500 | |
| H (mm) | 2,000 | 2,000 | 2,000 | 2,960 | |
| WEIGHT (kg) | 6,427 | 5,171 | 6,963 | 9,100 | |

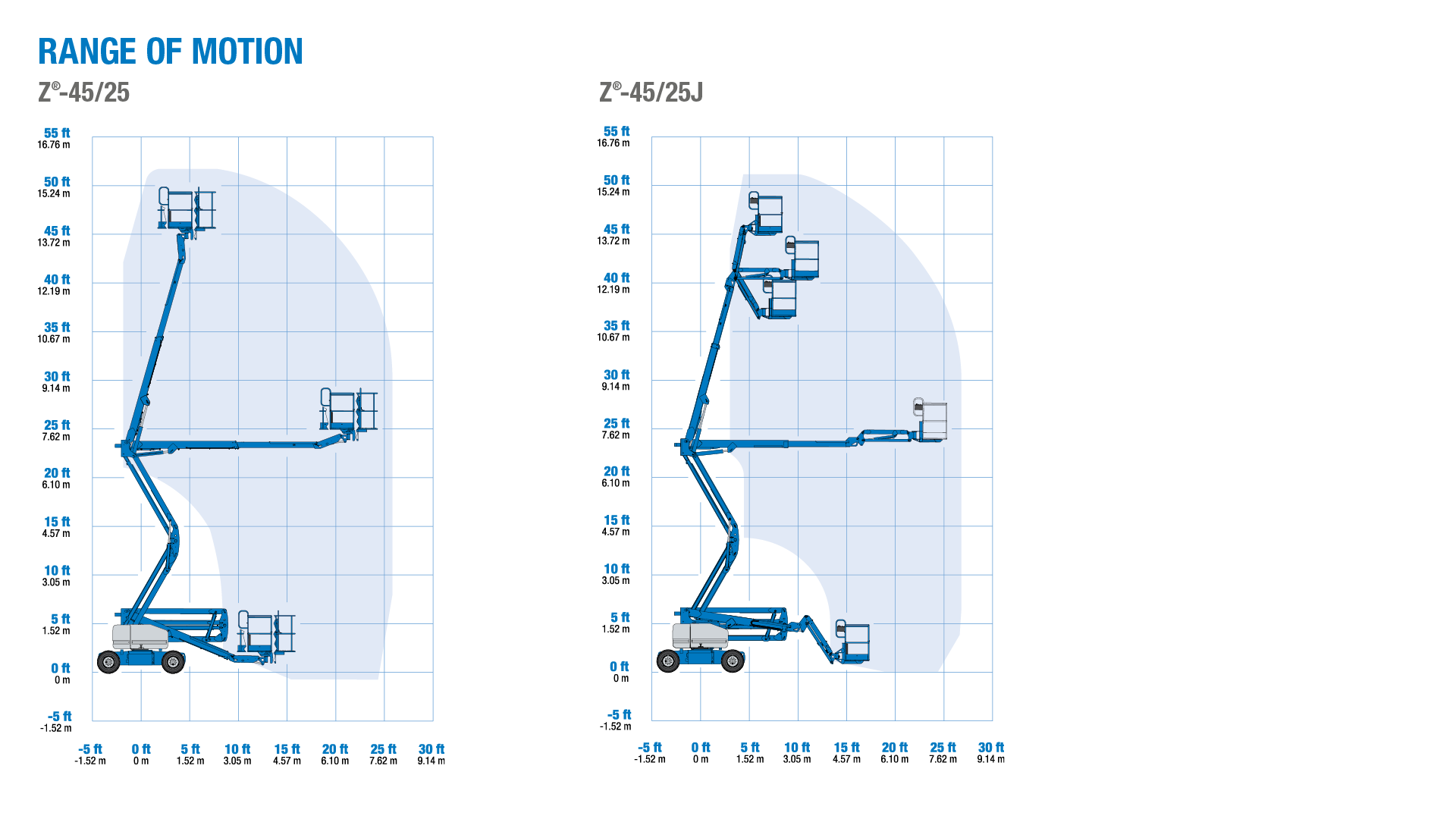

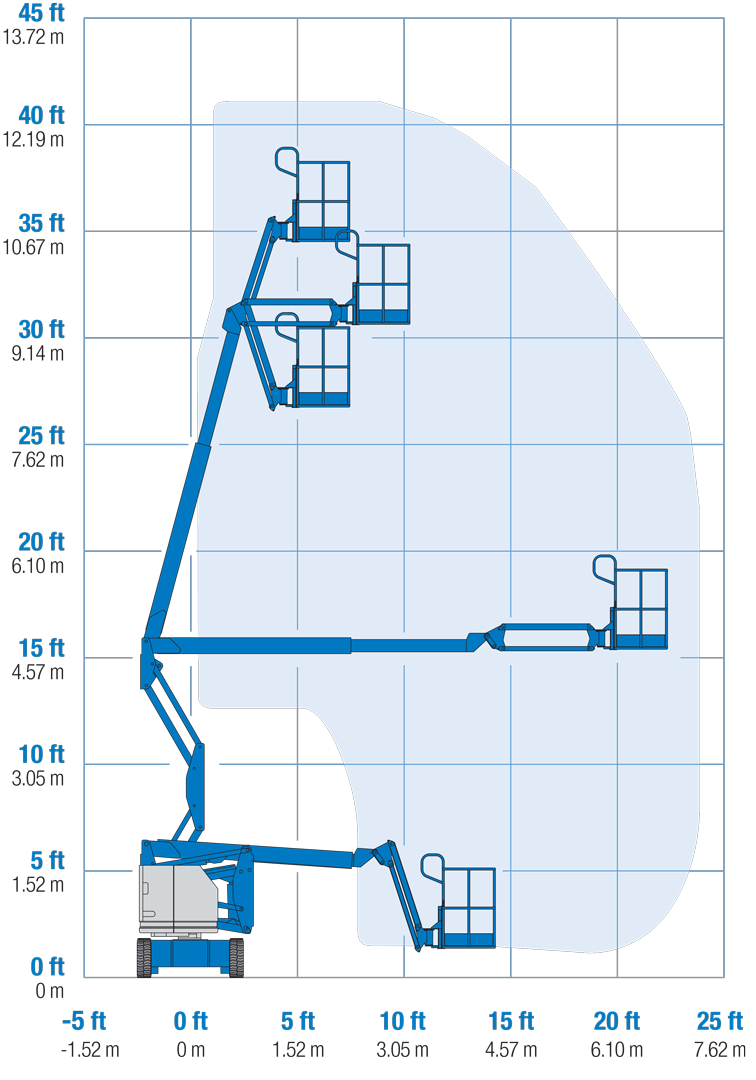

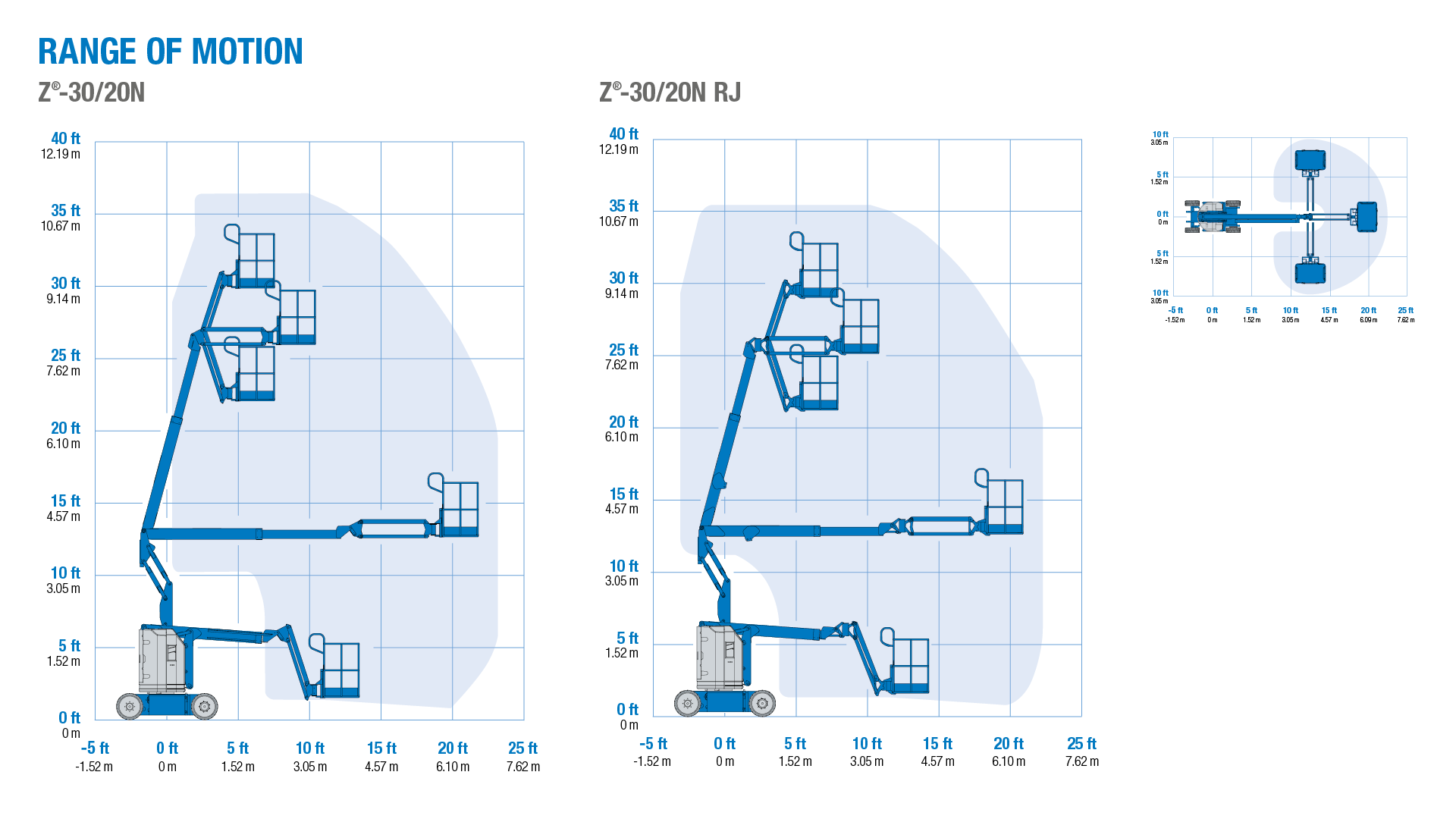

SEE WORKING RADIUS
